STRENGTH AND RESILIANCE BEYOND ANY OTHER

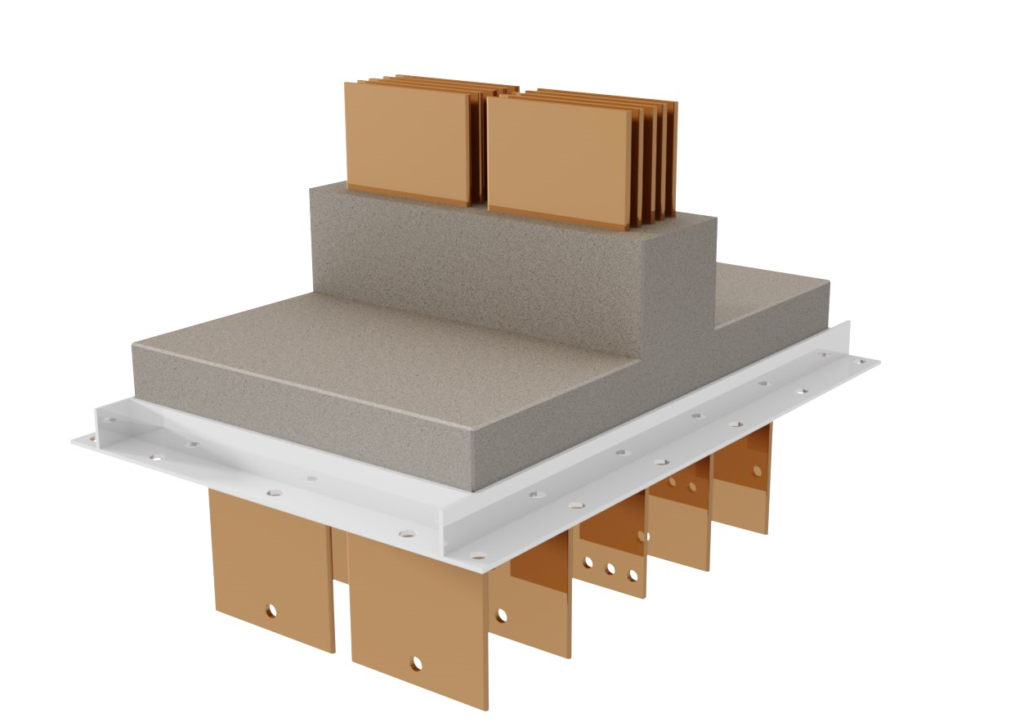

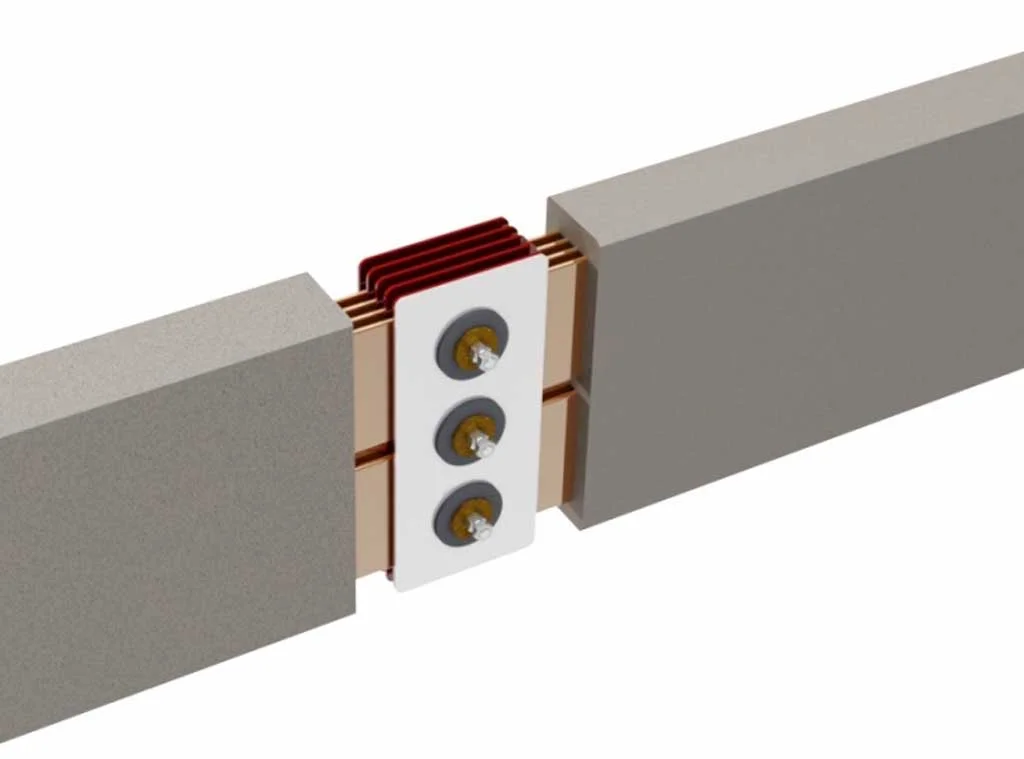

RESINBAR is an arrangement of Copper (CXC) or Aluminium (CXA) busbars which are fully encapsulated within a specialist IP68 rated composite epoxy resin. The combination of materials and construction provides enhanced environmental, fire and chemical resistance.

RESINBAR employs patented technologies in vacuum composite mixing to ensure a highly uniform and homogenous mix that is flame retardant and self-extinguishing, and offers high levels of resistance to fire, water, humidity and chemicals.

Like all Anord Mardix busbar systems, you can be confident in working with us to create a RESINBAR system to cope with every eventuality.

KEY FEATURES

  • Independently certified by Intertek to ASTA standards and in accordance with IEC / BS EN 61439
  • Independently tested for ingress protection (IP68), impact resistance (IK10), short-circuit withstand, heat-rise, flame propagation (IEC 60332-3-10), fire penetration (ISO 834-1), fire resistance (BS 8519, BS 8491, IEC 60331-1) and resistance to major seismic events (Richter magnitude 7.0-7.9)
  • Improved electrical performance
  • Can be used internally and externally with no need for annual maintenance on the bar
  • Smaller form factor
  • Modular installation and both flexibility and transformability of the overall system
  • Cast resin busbar trunking is an environmentally friendly option
  • Minimal waste produced compared to cable

ARDUOUS BENEFITS

  • The unique epoxy resin system provides both mechanical strength and electrical insulation to the units.
  • The RESINBAR has enhanced environmental, fire and chemical resistance as well as resistance to major seismic events (Richter magnitude 7.0-7.9) making it ideal for projects around the world.
  • Suitable for outdoor use in arduous or challenging environments and as part of a life safety system where every aspect of reliability is crucial.

SPECIFICATIONS

Specification advice is always available based on the client requirements, site and supply constraints and any preferred suppliers.
